"Howell Magnetic Drive Centrifugal Water Pump"
(For Internal Combustion Engines)

This is the high performance water pump I designed for my "Howell V-Four" engine. Ordinary pumps have a shaft that enters the case to drive the impeller. This requires a lubricated shaft seal to prevent leakage. In miniature sizes it can be a challenge to have a seal that prevents leaks, not create excessive friction on the shaft and be reliable over long periods of time. I designed this pump to satisfy all these requirements. There is no shaft that enters the pump case, so no seal is needed at all. It takes very little power  to turn even at high water delivery rates. The pump housing internal has an easy to produce simulated involute spiral shape with a cutwater for efficient operation and high delivery. The pump is made almost entirely of brass. I nickel plated mine for looks, but that has nothing at all to do with operation or anything else.

The plans set consists of two sheets of drawings and one sheet of construction notes.

Specifications:

Housing Diameter: 1.125" Housing Thickness:  .490" Impeller Diameter:   .700" Suction & Discharge       Port Diameters:   .250"

Howell Magnetic Drive Water Pump Plans - $8.00
(Use the Project Plans Order Form to place an order. Otherwise, see the "How To Order" page)

---

"Magnetic Drive Water Pump" HTF (Hard-to-Find) Materials Kit

Contents of kit:

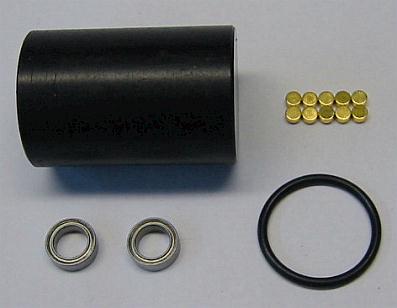

(1) 1-1/2" length of 1" dia. delrin rod to make pump cover (1) 13/16" x 1/16" "O" ring cover seal (2) 1/4" ID X 3/8" OD ball bearings for drive pulley (10) 1/8" dia. rare earth magnets to drive impeller

"Magnetic Drive Water Pump" HTF Materials Kit - $13.00
(Use the Kits & Parts Order Form to place an order. Otherwise, see the "How To Order" page)
